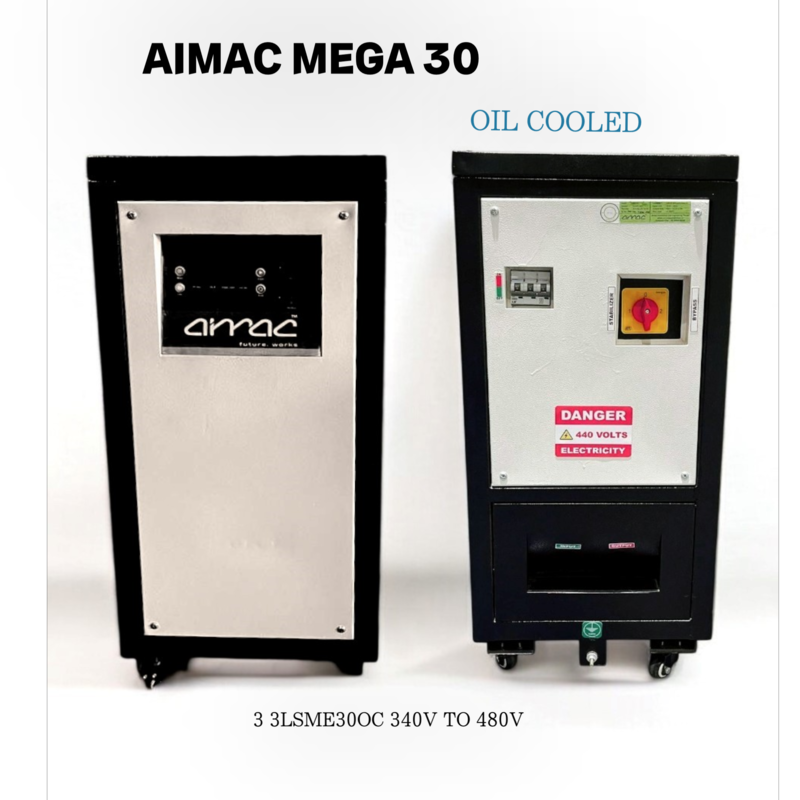

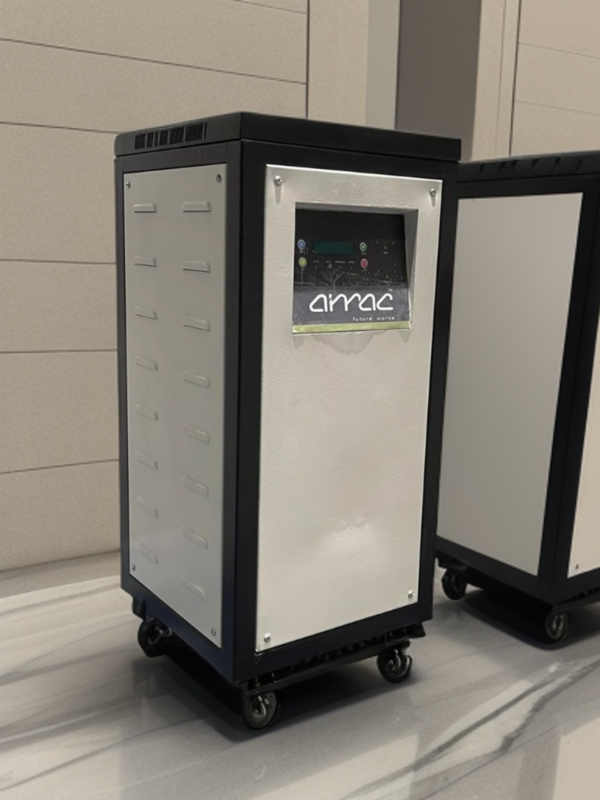

AIMAC Mega30 3LSME30OC 340v to 480v
30 KVA – 3 Ph - Oil COOLED Input Voltage : 340V – 480V Output Voltage : 400 / 415V ± 1% (Including Contactor, Bypass Switch, MCB & LCD display for Input & Output Voltage) - Standard : Confirming IS9815 - Max Output Current 43Amps - Frequency 50 Hz - Audio and Visual Alarm - Response Time Less Than 100 ms - Correction method Linear type continuous variable regulation - Temperature rise (max) 60°C Above ambient temp. - Method of cooling OIL COOLED - Overload capacity 120% - Efficiency Above 98% - Duty Cycle 100% continuous - Trip & Restart System Automatic - Reset Manual / Auto reset with time delay and programmable - Suitability Suitable for 3phase, 4wire Unbalanced Voltage & Unbalanced / Balanced Load - Connection Star - Correction speed 15V / sec - Terminations As per IS:3347
Non-returnable
₹86,400.00
Choose Quantity :
Product Information
Product Details
- Brand: AIMAC
- Model: Mega30 3LSME30OC
- Voltage Range: 340V to 480V
- Cooling Type: Oil Cooled – Provides enhanced cooling to maintain optimal performance
- Power: Designed for heavy-duty machinery, large-scale industrial applications, and commercial power systems
- Safety Features: Overvoltage, undervoltage, and overload protection for maximum safety and performance
- Energy Efficiency: Oil cooling system reduces energy consumption and heat buildup
- Durability: Built with high-quality materials to withstand demanding industrial environments
- Installation: Easy to install with low maintenance requirements
- Compliance: Meets industry standards for safety and reliability
- Applications: Ideal for manufacturing, automation, large-scale machinery, and industrial power systems
