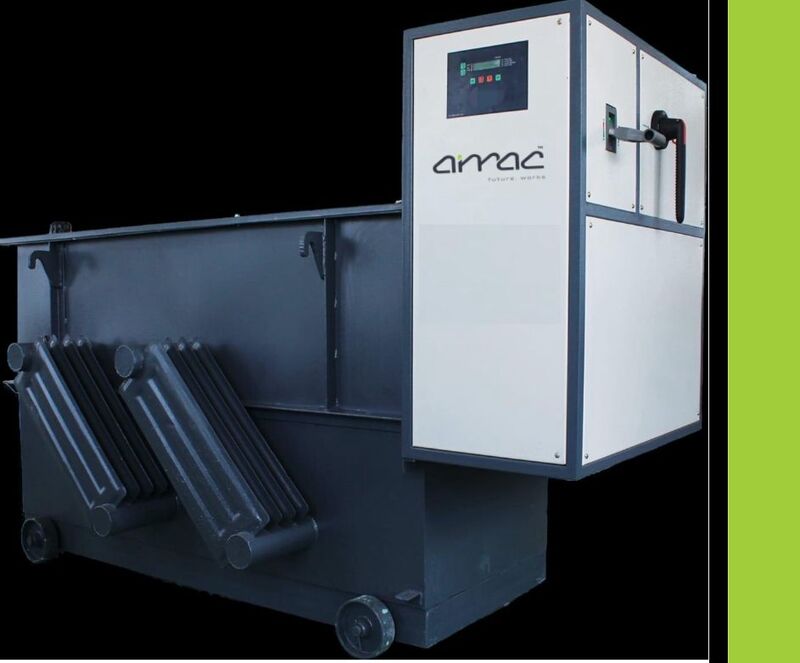

AIMAC Mega150 3LSME150OC
The AIMAC Mega150 Oil-Cooled Servo Stabilizer is a high-performance voltage regulation solution designed for large-scale industrial and commercial applications that demand superior power stability. With a robust 150KVA capacity, this stabilizer provides exceptional protection for sensitive equipment, preventing damage from voltage fluctuations and ensuring smooth, uninterrupted operations.
Featuring advanced oil-cooled technology, the AIMAC Mega150 ensures efficient heat dissipation, allowing it to handle high loads and maintain optimal performance over extended periods. This makes it ideal for heavy-duty applications where high power capacity and reliability are essential. The servo-controlled mechanism automatically adjusts the output voltage to precise levels, safeguarding equipment from potential damage caused by power surges or drops.
Its energy-efficient design minimizes power consumption, and its durable construction ensures long-lasting reliability even in demanding environments. Perfect for large factories, industrial plants, and commercial establishments, the AIMAC Mega150 offers unmatched performance, reduced maintenance costs, and maximum equipment protection.
Product Details
- 150 KVA – 3 Ph - OIL COOLED
- Input voltage: 340 to 480v
- Output voltage: 400/415V ± 1%
- (Including Contactor, Bypass Switch, MCB & LCD display for Input & Output Voltage)
- Maximum output current: 215 Amps
- Frequency: 50 Hz
- Audio-Visual Alarm: -Response time Less than 100 ms
- Correction method Linear type continuous variable regulation
- Temperature Rise (max) 60° C Above ambient temp.
- Method of cooling OIL COOLED
- Overload capacity 120% - Efficiency Above 98% -Data cycle 100% continuous -Control type Digital Microcontroller Based with Data Logger
- Trip & Restart System Automatic
- Reset Manual / Auto reset with time delay and programmable
- Transcient Suppression Above 270 V 1ph & 450V 3-Ph
- Suitability Suitable for 3phase, 4wire Unbalanced Voltage Unbalanced/Balanced load
- Connection Star
- Correction speed 15V/sec
- Terminations As per IS:3347
- Oil grade IS335 (Transformer oil)
- Monitoring facility Input, Output Voltage, Output current
