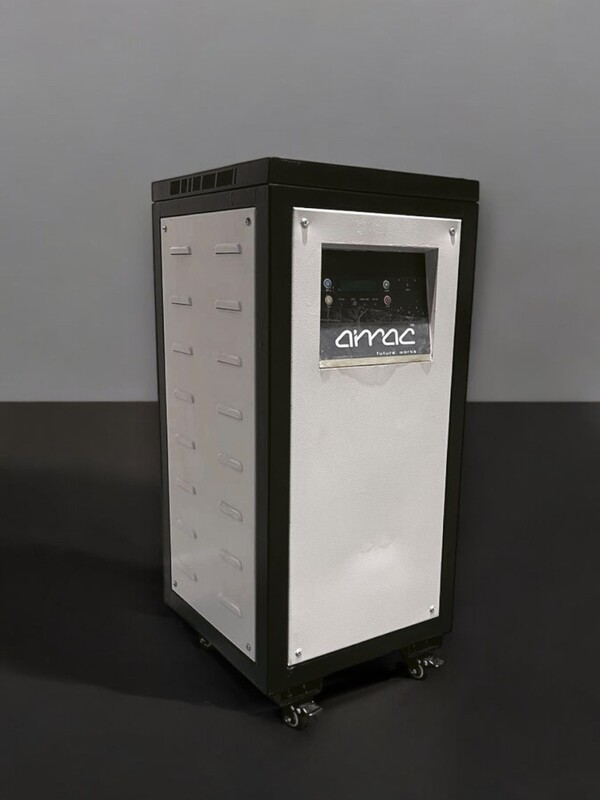

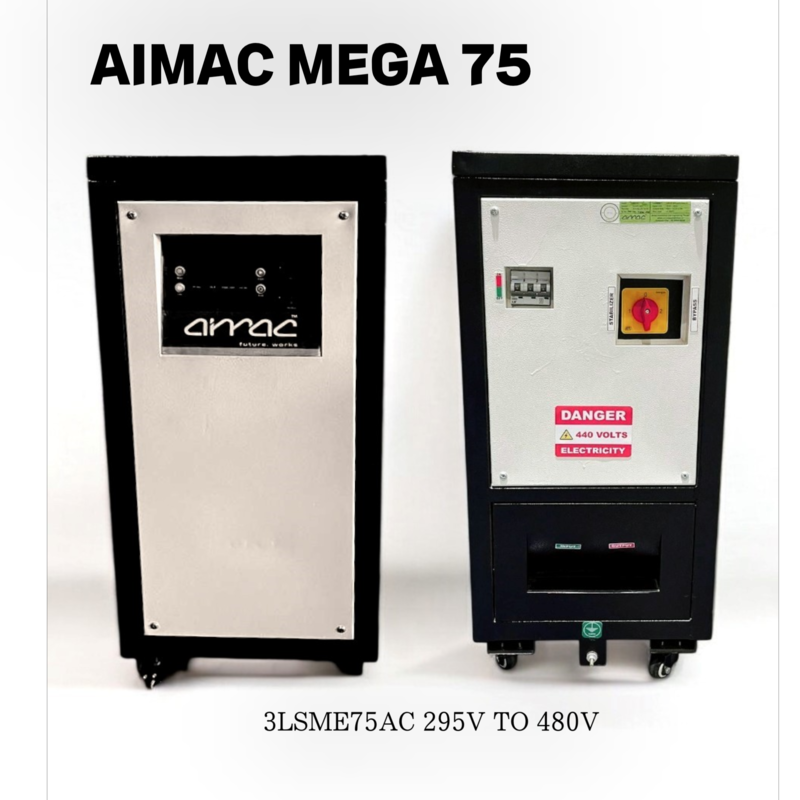

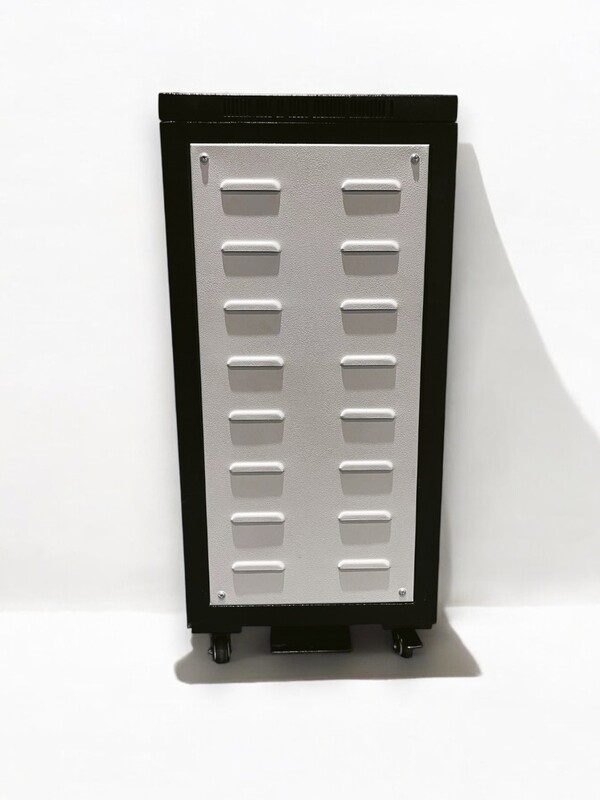

AIMAC Mega75 3LSME75AC 295v to 480v

75 KVA – 3 Ph - AIR COOLED Input Voltage : 295V – 480V Output Voltage : 400 / 415V ± 1% (Including Contactor, Bypass Switch, MCB & LCD display for Input & Output Voltage) - Standard : Confirming IS9815 - Max Output Current 72Amps - Frequency 50 Hz - Audio and Visual Alarm - Response Time Less Than 100 ms - Correction method Linear type continuous variable regulation - Temperature rise (max) 45°C Above ambient temp. - Method of cooling AIR COOLED - Overload capacity 120% - Efficiency Above 98% - Duty Cycle 100% continuous - Trip & Restart System Automatic - Reset Manual / Auto reset with time delay and programmable - Suitability Suitable for 3phase, 4wire Unbalanced Voltage & Unbalanced / Balanced Load - Connection Star - Correction speed 15V / sec - Terminations As per IS:3347
