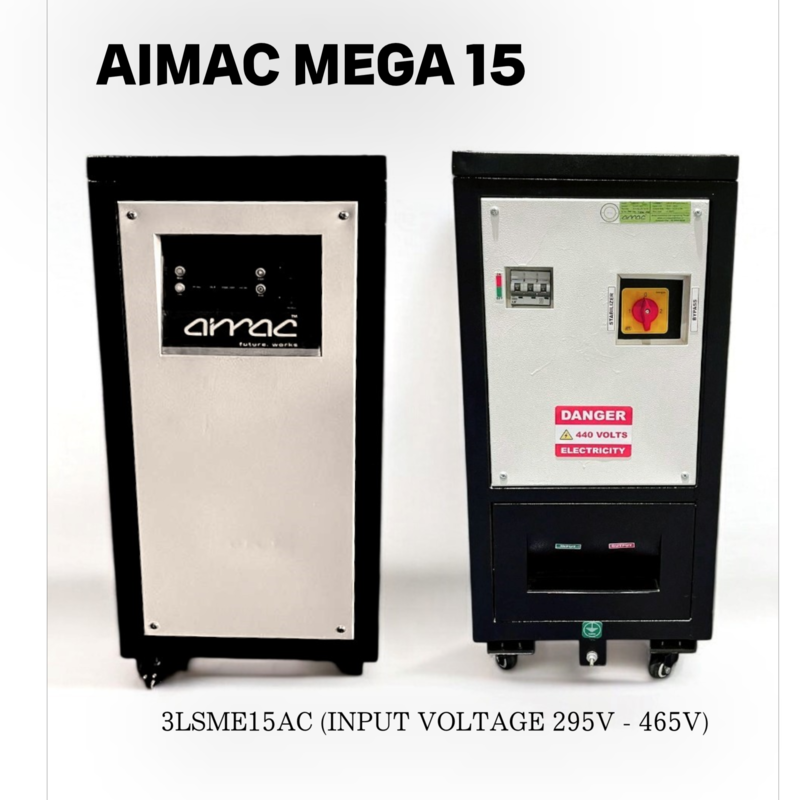

AIMAC Mega15 3LSME15AC (Input Voltage 295V - 465V)
The AIMAC Mega15 3LSME15AC Servo Stabilizer is a reliable and efficient voltage regulation solution designed to protect sensitive equipment in industrial and residential settings. With a capacity of 15KVA and a wide voltage range of 295V to 465V, it ensures stable and consistent power supply, even in areas prone to voltage fluctuations.
Equipped with advanced servo-controlled technology, this stabilizer automatically adjusts the voltage to optimal levels, safeguarding electrical devices and machinery from potential damage caused by overvoltage or undervoltage. Its energy-efficient design reduces power consumption while ensuring reliable performance.
Built with durability and precision, the AIMAC Mega15 3LSME15AC is ideal for medium-sized applications, offering long-lasting protection and enhanced operational efficiency. Whether for industrial operations or residential use, this stabilizer provides peace of mind by ensuring uninterrupted power and extending the lifespan of your valuable equipment.
Product Details
- 15 KVA – 3 Ph - AIR COOLED
- Input line voltage : 295 to 465V AC Output line voltage
- 400/415V ±1% (Including Contactor, Bypass Switch, MCB & LCD display for Input & Output Voltage)
- Standard : Confirming IS9815
- Maximum output current : 22Amps
- Frequency 50 Hz - Audio and Visual Alarm
- Response Time Less Than 100 ms
- Correction method Linear type continuous variable regulation
- Temperature rise (max) 45°C Above ambient temp.
- Method of cooling AIR COOLED - Overload capacity 120%
- Efficiency Above 98% - Duty Cycle 100% continuous
- Trip & Restart System Automatic
- Reset Manual / Auto reset with time delay and programmable
- Suitability Suitable for 3phase, 4wire Unbalanced Voltage & Unbalanced / Balanced Load
- Connection Star
- Correction speed 15V / sec
- Terminations As per IS:3347
