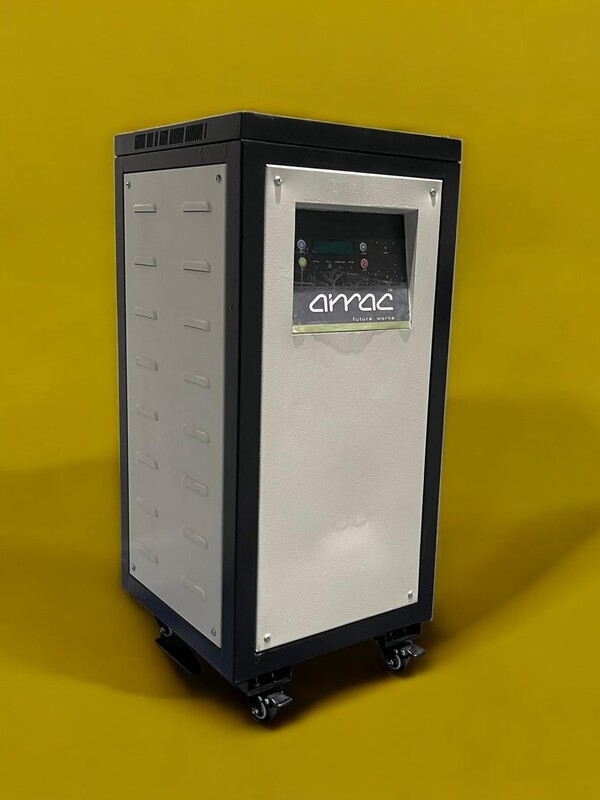

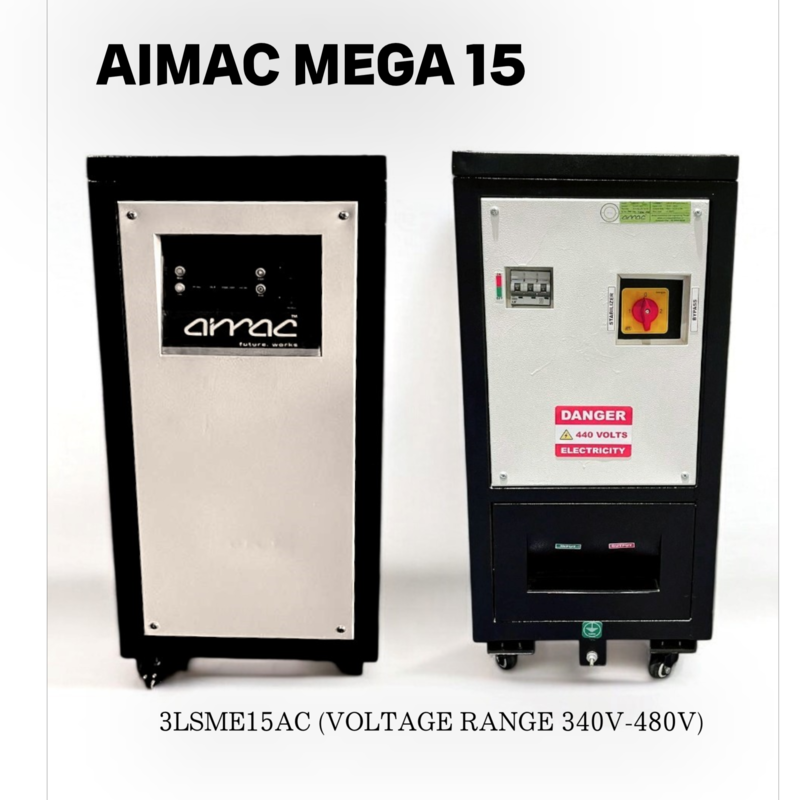

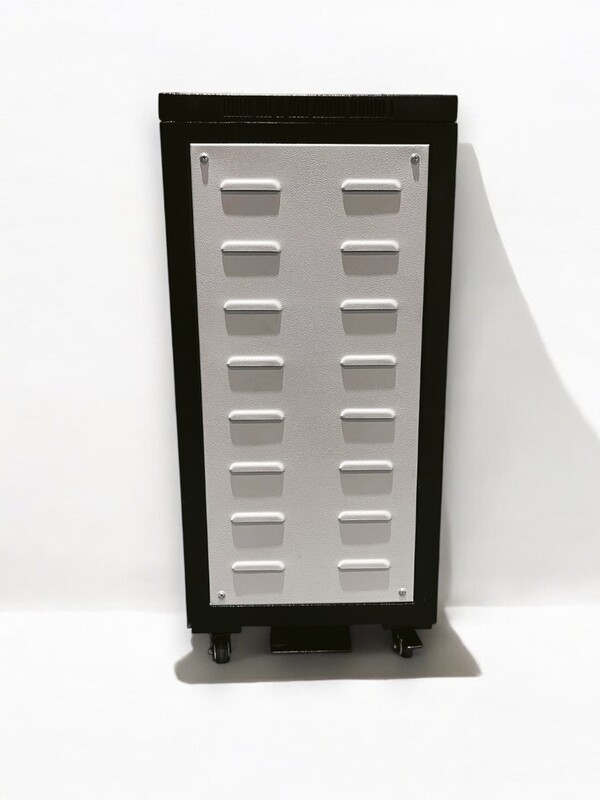

AIMAC Mega15 3LSME15AC (Voltage Range 340v-480v)
The AIMAC Mega15 3LSME15AC Servo Stabilizer is a high-performance voltage regulation system engineered to deliver stable and reliable power. With a capacity of 15KVA and a voltage range of 340V to 480V, it is ideal for protecting sensitive equipment in industrial, commercial, and residential applications.
Powered by advanced servo-controlled technology, the stabilizer ensures precise voltage regulation by automatically adjusting output to optimal levels, safeguarding devices and machinery from voltage fluctuations. Its energy-efficient design reduces power consumption, making it a cost-effective solution for long-term use.
Built with durability and reliability in mind, the AIMAC Mega15 is designed to handle demanding environments, ensuring uninterrupted power supply and enhanced equipment longevity. Whether for factories, offices, or homes, this stabilizer provides superior performance, prevents downtime, and protects valuable equipment from damage caused by voltage instability. The AIMAC Mega15 3LSME15AC is the perfect choice for efficient and dependable power management.
Product Details
- 15 KVA – 3 Ph - AIR COOLED
- Input line voltage : 340 to 480V AC
- Output line voltage : 400/415V ±1%
- (Including Contactor, Bypass Switch, MCB & LCD display for Input & Output Voltage)
- Standard : Confirming IS9815
- Maximum output current : 22Amps
- Frequency 50 Hz - Audio and Visual Alarm
- Response Time Less Than 100 ms
- Correction method Linear type continuous variable regulation
- Temperature rise (max) 45°C Above ambient temp.
- Method of cooling AIR COOLED
- Overload capacity 120%
- Efficiency Above 98%
- Duty Cycle 100% continuous
- Trip & Restart System Automatic
- Reset Manual / Auto reset with time delay and programmable
- Suitability Suitable for 3phase, 4wire Unbalanced Voltage & Unbalanced / Balanced Load
- Connection Star
- Correction speed 15V / sec
- Terminations As per IS:3347
