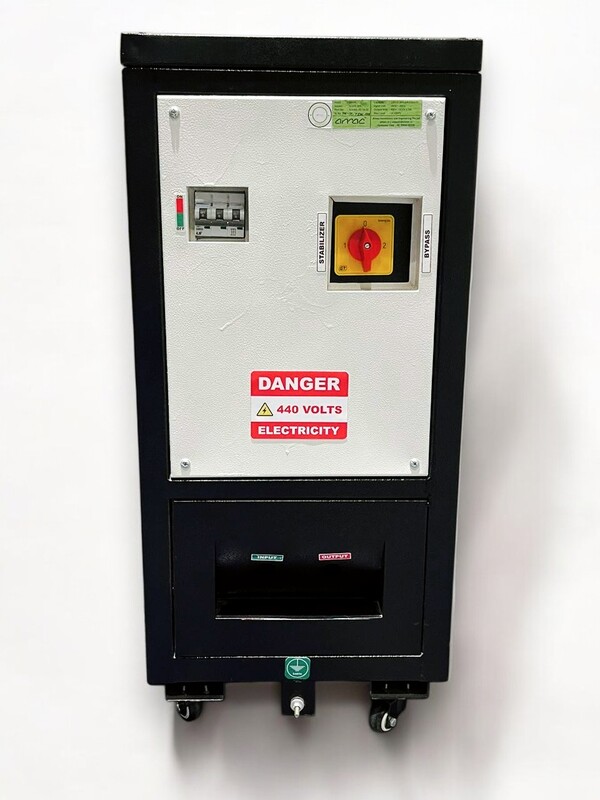

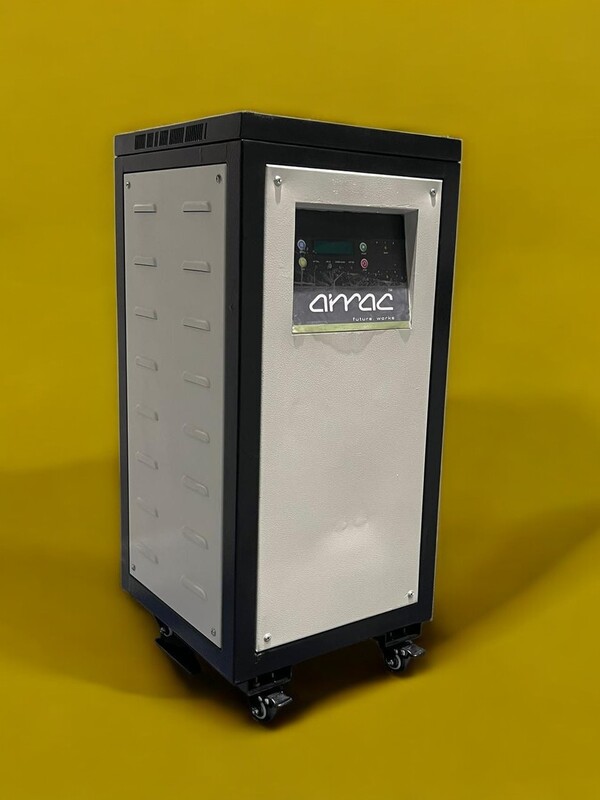

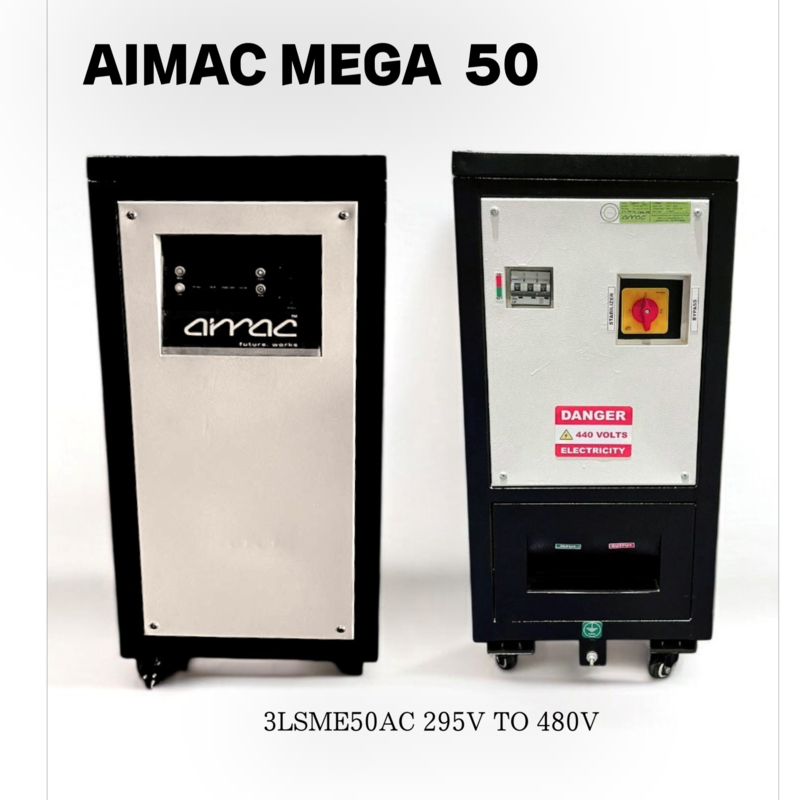

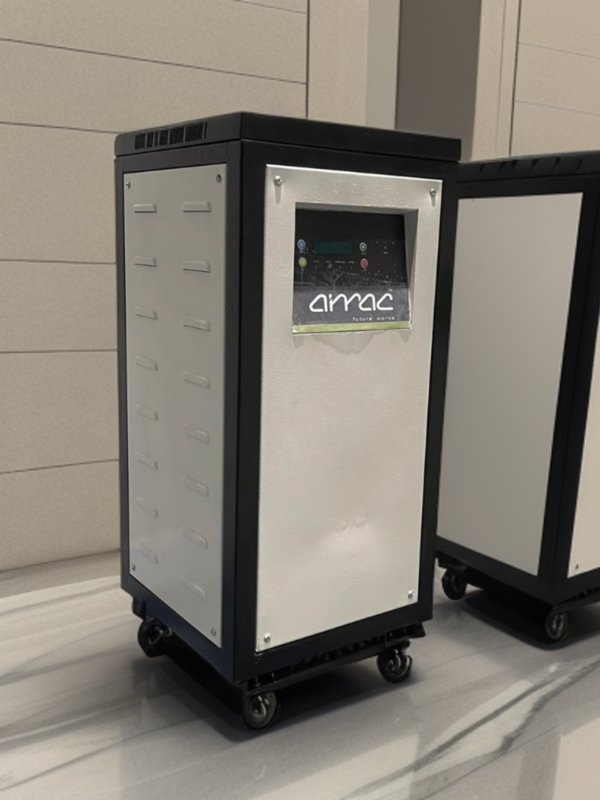

AIMAC Mega50 3LSME50AC 295v to 480v
50 KVA – 3 Ph - AIR COOLED Input Voltage : 295V – 480V Output Voltage : 400 / 415V ± 1% (Including Contactor, Bypass Switch, MCB & LCD display for Input & Output Voltage) - Standard : Confirming IS9815 - Max Output Current 72Amps - Frequency 50 Hz - Audio and Visual Alarm - Response Time Less Than 100 ms - Correction method Linear type continuous variable regulation - Temperature rise (max) 45°CAbove ambient temp. - Method of cooling AIR COOLED - Overload capacity 120% - Efficiency Above 98% - Duty Cycle 100% continuous - Trip & Restart System Automatic - Reset Manual / Auto reset with time delay and programmable - Suitability Suitable for 3phase, 4wire Unbalanced Voltage & Unbalanced / Balanced Load - Connection Star - Correction speed 15V / sec - Terminations As per IS:3347
Non-returnable
₹132,000.00
Choose Quantity :
Product Information
Product Details
- Brand: AIMAC
- Model: Mega50 3LSME50AC
- Voltage Range: 295V to 480V
- Power: Ideal for heavy-duty industrial machinery and large-scale commercial applications
- Safety Features: Overvoltage, undervoltage, and overload protection to ensure optimal safety
- Energy Efficiency: Energy-efficient design reduces operational costs and improves overall performance
- Durability: Built with high-quality materials for long-lasting performance in harsh industrial environments
- Installation: Quick installation process with minimal maintenance required
- Compliance: Meets industry standards for performance and safety
- Applications: Suitable for manufacturing, automation, commercial power systems, and heavy-duty industrial applications
