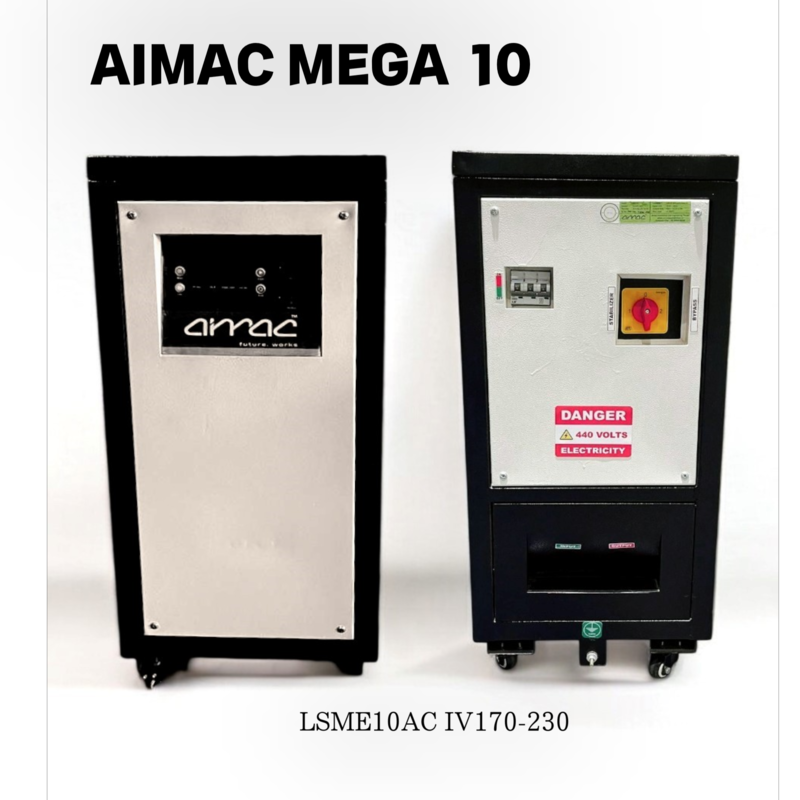

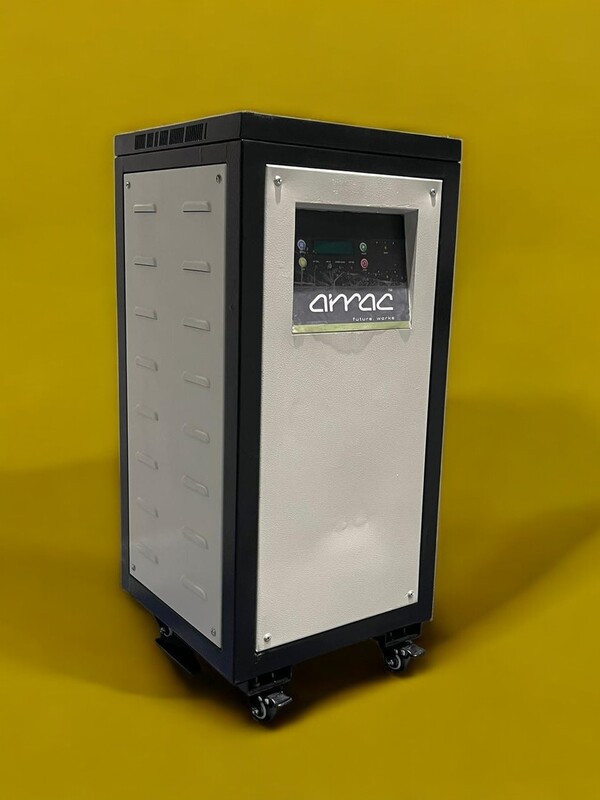

AIMAC Mega10 LSME10AC IV170-230

10 KVA – 1 Ph - AIR COOLED Input Voltage : 170V – 270V Output Voltage : V230V ± 1% (Including Contactor, Bypass Switch, MCB & LCD display for Input & Output Voltage) - Standard : Confirming IS9815 - Max Output Current : 43Amps - Frequency : 50 Hz - Audio and Visual Alarm - Response Time : Less Than 100 ms - Correction method : Linear type continuous variable regulation - Temperature rise (max) : 45°CAbove ambient temp. - Method of cooling : AIR COOLED - Overload capacity 120% - Efficiency Above 98% - Duty Cycle 100% continuous - Trip & Restart System Automatic - Reset Manual / Auto reset with time delay and programmable - Correction speed 15V / sec - Insultation Class F
